Hx Nitro

Ideal for coding on plastic bottles,plasticpouches,laminated sheets,aluminium cans,metals and others.Minimizing investiment& Maxmizing output with high-tech coding technology for small to medium-scale production line
LOW-COST OF OWNERSHIP:Equipped with advanced coding technology that offerslowcost of investment to simplify .
MAINTENANCE-FREE:There is nofactory maintenance needed with an Engineer to maintain the performance of the printer. When troubleshooting is required, it can be done remotely or thru quick training guide available online.
EASE OF USE:Extremely easy to use with its Wi-Ficapability that allows quick message design and control of the printer using any smart device. No intensive training required.
CLEAN OPERATION:No messy ink drops in the production line. Perfect for hygeinically demanding production environment.

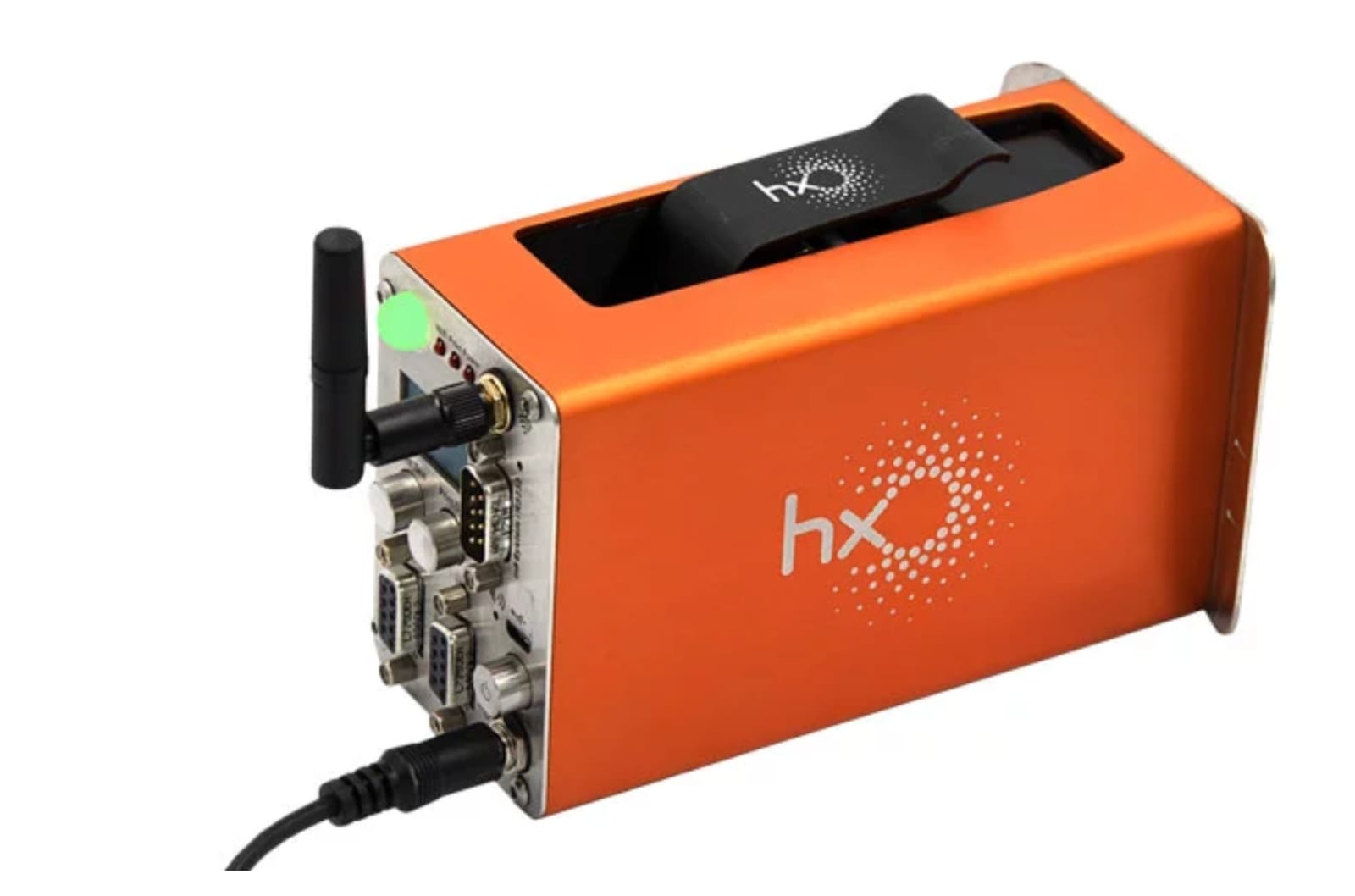

CONTROLLER
DISPLAY	Optional Tablet [10"] with Anti-theft Lock
MESSAGE DESIGN	1) Web-based software 2) Vanguard Create: Windows-based Message Design Software
MESSAGE CAPACITY	Unlimited (within Tablet / Windows PC)
START & STOP TIME	Immediate
PASSWORD PROTECTION	Yes
ALARM	Built-in beacon, 128×64 pixel OLED, Buzzer
COMPRESSED AIR REQUIRED	No
NUMBER OF PRINTHEADS	1
SYSTEM LANGUAGE	German, French, Japanese, Portuguese, Spanish, Thai, Turkish, Hindi, Arabic, Chinese (other languages upon request)
PRODUCT CERTIFICATION	CE
WARRANTY	12-month limited warranty (Terms & Conditions apply)

PRINTING FEATURES
RESOLUTION	600 dpi(Standard throw distance ink)300dpi(high-throw distance ink)
MAXIMUM PRINT SPEED	120 m/min
LOGO PRINTING OPTION	Yes
HEIGHT RANGE OF PRINTABLE CHARACTERS	Up to 12.7 mm (~0.5")upto
NUMBER OF PRINT LINES	6(2 mm each)
PRINT LANGUAGES	All available Windows languages and fonts
FONTS	Allows users to load required fonts
BARCODE PRINTING	All types of barcodes
DATE FORMAT	Various date formats
COUNTERS	Print, message, and user-defined counters available
MESSAGE COMPONENTS	Text \| Date \| Time \| Logo \| Counter \| Shift \| Barcode \| External Data \| Lot Number \| Alphanumeric

CONNECTIONS & INTEGRATION
CONNECTIVITY:	Easy connectivity based on customer needs : WiFi / Isolated RS232 / USB
POWER SUPPLY:	110–220 VAC
TWO OR THREE COLOR:	Optional
EXTERNAL BEACON:	Optional
PRINT SENSORS:	Two built-in (left & right) + external sensors
MOUNTING & STAND:	T- Bracket mounting or Tripod Stand

INK SOLUTIONS
TECHNOLOGY	Funai Cartridge Technology
INK TYPE	Wide range of porous and non-porous ink selection
COLOUR	Black (Solvent-based), Black/Red/Blue (Water-based / semi-solvent)
CASSETTE DIMENSION	60 mm × 74 mm × 25.5 mm
THROW DISTANCE	Normal: 4 mm; High-throw: up to 8–10 mm
INK RECOGNITION	Automatic

ADVANCED FEATURES
AUTO NOTIFY	Events such as 'Low ink', 'Printing completed' and 'online data recieved' can be automatically communicated by choosing selected channels e.g. USB, RS232, WiFi (HTTP)
AUTO PILOT	Allows other External device to control & monitoring Hx Printer.Any third party device(e.g.PLC, ),system,or software can send a command to Hx Printer
DAILY PRODUCTION REPORT	Provides an hourly print report of the printer giving an overview of the completed daily production
ECONOMY MODE	Reduces ink consumption to up to 50% increasing print quality
EXTERNAL DATA	Easy integration to external devices e.g. PLCs, weighing scale,etc for printing variable data .Auto calculator and printing of the product weight
FIELD UPGRADE	Allows the printer's software to be upgraded remotely
INK ESTIMATION CALCULATOR	provides an estimate number of prints per cartridge based on the message and other parameters
PRINTER HEALTH CHECK	Detects warnings to avoid future or unwanted downtime
ROLLOVER TIME	Easily customise time and date as to company's required production time or work shifts

PHYSICAL SPECIFICATIONS
HOUSING MATERIALS	Coloured Anodized Aluminium & Stainless Steel
CONTROLLER & INK SYSTEM WEIGHT	901 gm
DIMENSIONS	146 mm × 60 mm × 84 mm
ENVIRONMENTAL CONDITIONS	Temperature 0–50°C, Humidity 0–80%
