Continuous Inkjet (CIJ) printers are advanced printing devices that offer high-speed and reliable printing solutions. These printers use a continuous stream of ink droplets to create precise and sharp prints on various surfaces, including paper, plastic, and metal. With their versatile capabilities, CIJ printers are widely used in industries such as manufacturing, packaging, and labeling. They are known for their ability to print on curved and uneven surfaces, making them ideal for printing on bottles, cans, and other irregularly shaped objects. CIJ printers also offer a wide range of ink colors, allowing businesses to create vibrant and eye-catching prints. Additionally, these printers are designed to be cost-effective, with efficient ink usage and minimal maintenance requirements. With their fast printing speeds and high-quality output, CIJ printers are a valuable asset for businesses looking to enhance their printing capabilities.
Printing Parameters
Print Head Duct - 3m/6m
Nozzle Specifications - 400u、50u、60u、75u
Printing Height - 2-20mm.
Printing Distance - 3~30mm
Printing Lines - 1-5 lines
Printing Speed - Please refer to the speed sheet
Counter - More than 20 independent counters
Ink Color - Black, Red, Blue, Green, White, Invisible
Ink Type - High adhesion, Migration resistance, High temperature resistance, Special for glass, Permeability, Food grade, Oil resistance
Font - 5x6L 7×61 7×10L 9×8L 9×11L
11×11L 16×16L 24×24L 32×32L
11×118 16×16B 24×24B 32×328
Printing Material - Carton, Plastic, Metal, Boarding, Pipe, Stone, Cable, Glass, Electronic components, Auto parts, Industrial chemical packaging, Medical/Food/Gift box
Print Content - Text, Time, Date(Julian Year), Logo, Shift, SN, Dynamic Barcode/QR Code, Dynamic Serial Data, Dynamic Database(Additional content can be added as required)
Operating System - Embedded Linux security operating system

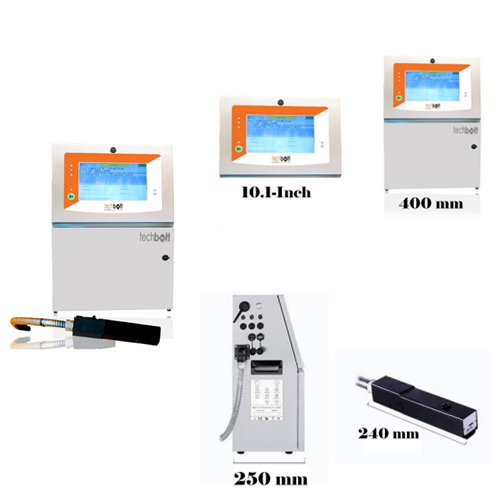

Display Screen - 10.1-inch color display, industrial touch screen
Communication Interface - Network port, USB, RS232
Protection Level - IP55
Power Parameters - Input 100-240V AC
Rated power - 150W
Memory - 256M
Machine Material - 304 stainless steel
Machine Specifications- 400mm×250mm×550mm(Length(width height)
Working Environment - Temperature 0-45°C/Humidity 30-70%Rh
Related Certification - RoHS、CE、 BIS
Net Weight - 22kg
Main Hardwar - American TI AM3358 industrial grade CPU, American Xilinx Spartan-6 industrial grade FPGA
External Interface - Optical sensor, Encoder, Reverse and upside down control, Signal light alarm output, Serial number output control, External printing information selection
Support Language - Support more than 40 national languages (Chinese, English, Arabic, Danish, German, Russian, French, Finnish, Korean, Japanese, Spanish, Italian, etc.)
Print Head - The nozzle valve adopts direct sealing nozzle hole structure, effectively prevent the ink leakage.
Ink System- Single print head and recovery diaphragm pump design makes more stable and durable.
Main Hardware - The main board with newest structure has superior performance of function and stability, and the EHT is dustproof and waterproof, better to deal with the harsh and complex environment.
External Interface - With grade of IP68, the interface not only supports RS232, network port, but also the counter reset, information control and other functions.
| Nozzle Nize | Printing spacing (mm) |
Modulations Frequency |
Dots | Maximum Printing Speed (m/min) HS |
Maximum Printing Speed (m/min) ST |
Maximum Printing Speed (m/min) HQ |
|---|---|---|---|---|---|---|
| 5 | 384 | 320 | ||||
| 7 | 274 | 240 | ||||
| 9 | 192 | 148 | ||||
| 11 | 160 | 101 | ||||
| 64000 ("Standard Printer) | 12 | 148 | 87 | |||
| 16 | 107 | 80 | 56 | |||
| 24 | 60 | 31 | 27 | |||
| 60 | 0.5 | 32 | 30 | 22 | 15 | |
| 34 | 14 | |||||
| 5 | 576 | 480 | ||||
| 7 | 411 | 360 | ||||
| 9 | 288 | 222 | ||||
| 96000 | 11 | 240 | 152 | |||
| ("Opaque ink printer/ | 12 | 222 | 131 | |||
| High-speed Printer) | 16 | 160 | 120 | 85 | ||
| 24 | 90 | 47 | 41 |
