Ideal for marking fade-proof and long lasting barcodes and datecodes for secondary packaging
FREE:Operating the printer is simple and there is no factory maintenance(with Technical Engineer visit)needed to keepthe printer's performance.
DURABLE PRINTS:Uses pigment-based ink that produces clear,legible,and long lasting print that are more durable and resistant to fading ,water,and UV lights
USER-FRIENDLY: control and design messages using any smart device — no SD card required; cartridge replacement is easy.
FOOT PRINT:The printer doesnot have any bulky parts for other flexibility integration into any secondary packaging lines.

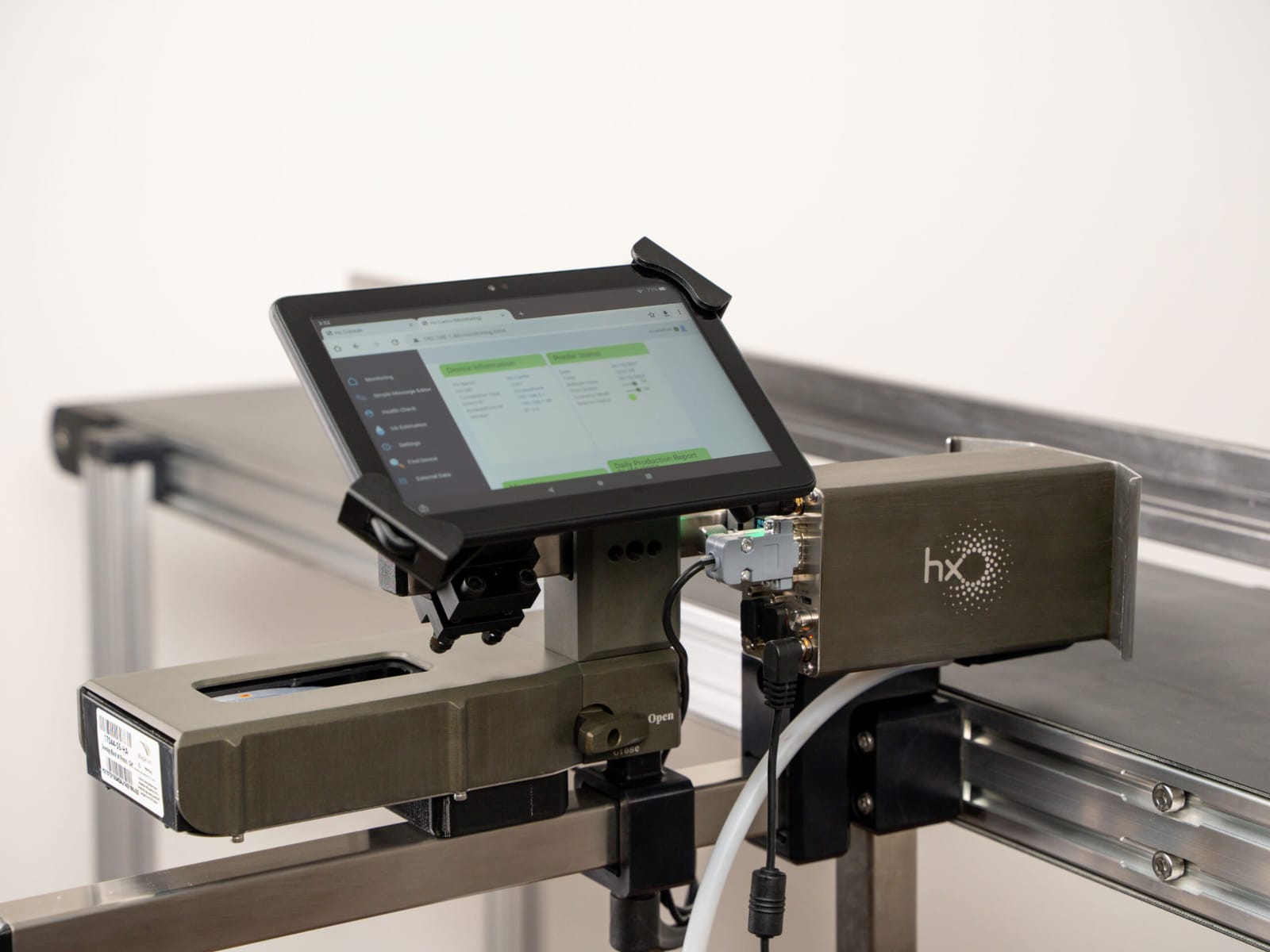

| CONTROLLER | |
|---|---|
| DISPLAY | Optional Tablet [10"] with Anti-theft Lock |
| MESSAGE DESIGN | 1) Web-based software 2) Vanguard Create: Windows-based Message Design Software |
| MESSAGE CAPACITY | Unlimited (within Tablet / Windows PC) |
| START & STOP TIME | Immediate |
| PASSWORD PROTECTION | Yes |
| ALARM | Built-in beacon, 128×64 pixel OLED, Buzzer |
| COMPRESSED AIR REQUIRED | No |
| NUMBER OF PRINTHEADS | 1 |
| SYSTEM LANGUAGE | German, French, Japanese, Portuguese, Spanish, Thai, Turkish, Hindi, Arabic, Chinese (other languages upon request) |
| PRODUCT CERTIFICATION | CE |
| WARRANTY | 12-month limited warranty (Terms & Conditions apply) |
| PRINTING FEATURES | |
|---|---|
| RESOLUTION | 180 dpi |
| MAXIMUM PRINT SPEED | 40 m/min |
| LOGO PRINTING OPTION | Yes |
| HEIGHT RANGE OF PRINTABLE CHARACTERS | Up to 70 mm (~2.8") |
| NUMBER OF PRINT LINES | Up to 36 (2 mm each) |
| PRINT LANGUAGES | All available Windows languages and fonts |
| FONTS | Allows users to load required fonts |
| BARCODE PRINTING | All types of barcodes |
| DATE FORMAT | Various date formats |
| COUNTERS | Print, message, and user-defined counters available |
| MESSAGE COMPONENTS | Text | Date | Time | Logo | Counter | Shift | Barcode | External Data | Lot Number | Alphanumeric |
| CONNECTIONS & INTEGRATION | |
|---|---|
| CONNECTIVITY: | Easy connectivity based on customer needs : WiFi / Isolated RS232 / USB |
| POWER SUPPLY: | 110–220 VAC |
| TWO OR THREE COLOR: | Optional |
| EXTERNAL BEACON: | Optional |
| PRINT SENSORS: | Two built-in (left & right) + external sensors |
| MOUNTING & STAND: | T- Bracket mounting or Tripod Stand |
| INK SOLUTIONS | |
|---|---|
| INK TYPE | Pigment-based link,Standard ink cassette |
| COLOUR | Black(Oil-based) |
| INK CASSETTE DIMENSION | 163 mm × 103.5 mm × 39 mm |
| THROW DISTANCE | Up to 8 mm |
| INK RECOGNITION | Automatic |
| ADVANCED FEATURES | |
|---|---|
| AUTO NOTIFY | Events such as 'Low ink', 'Printing completed' and 'online data recieved' can be automatically communicated by choosing selected channels e.g. USB, RS232, WiFi (HTTP) |
| AUTO PILOT | Allows other External device to control & monitoring Hx Printer.Any third party device(e.g.PLC, ),system,or software can send a command to Hx Printer |
| DAILY PRODUCTION REPORT | Provides an hourly print report of the printer giving an overview of the completed daily production |
| ECONOMY MODE | Reduces ink consumption to up to 50% increasing print quality |
| EXTERNAL DATA | Easy integration to external devices e.g. PLCs, weighing scale,etc for printing variable data .Auto calculator and printing of the product weight |
| FIELD UPGRADE | Allows the printer's software to be upgraded remotely |
| INK ESTIMATION | provides an estimate number of prints per cartridge based on the message and other parameters |
| PRINTER HEALTH CHECK | Detects warnings to avoid future or unwanted downtime |
| ROLLOVER TIME | Easily customise time and date as to company's required production time or work shifts |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| HOUSING MATERIALS | Coloured Anodized Aluminium & Stainless Steel |
| CONTROLLER & INK SYSTEM WEIGHT | 2380 g |
| DIMENSIONS | 470 mm × 220mm × 130mm |
| ENVIRONMENTAL CONDITIONS | Temperature 0–50°C, Humidity 0–80% |
